The Wave – Coventry Water Park – Cladding Installation and Single Ply Roof

Buckingham Group employed Pops to install the Cladding (8000m2) & Roofing (2000m2)

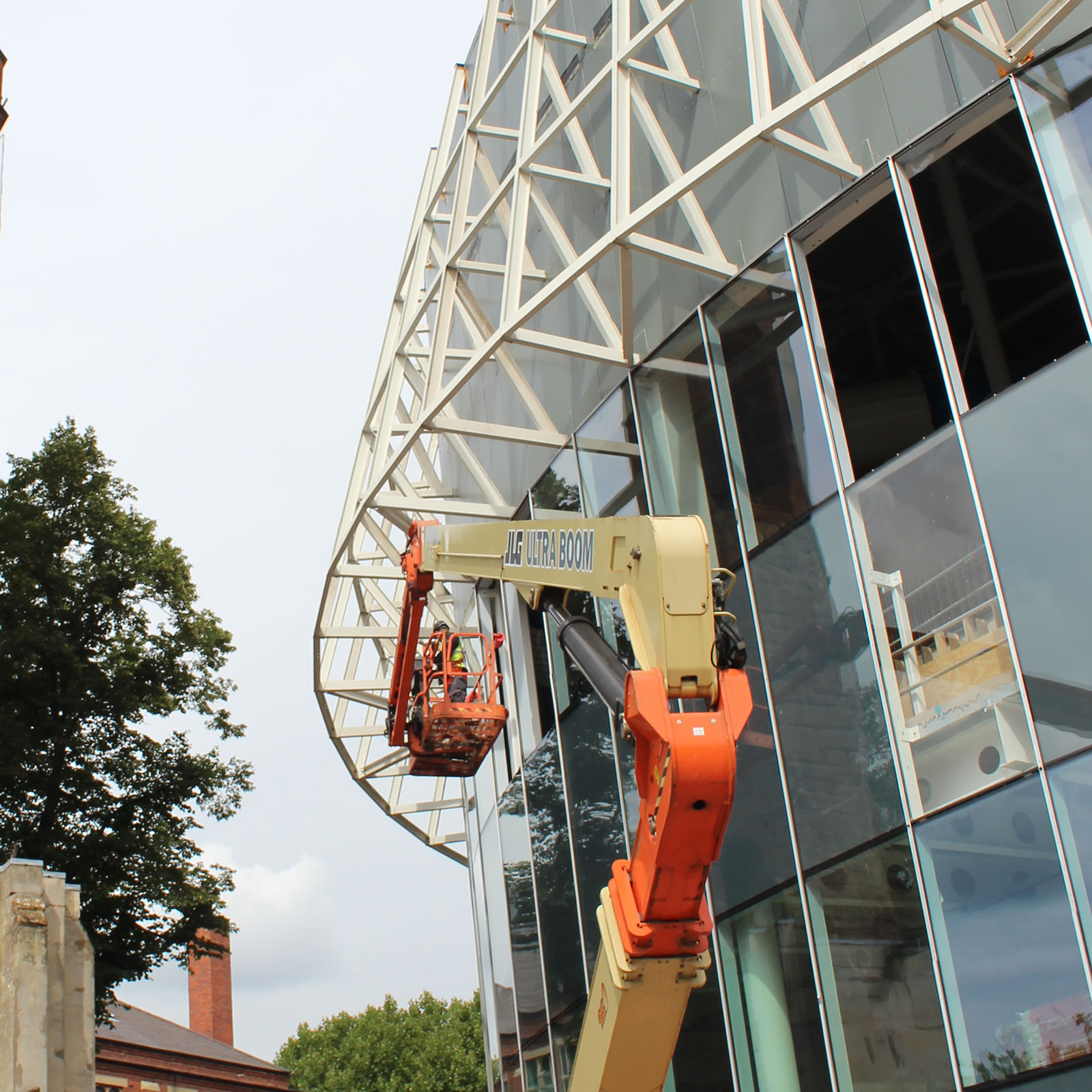

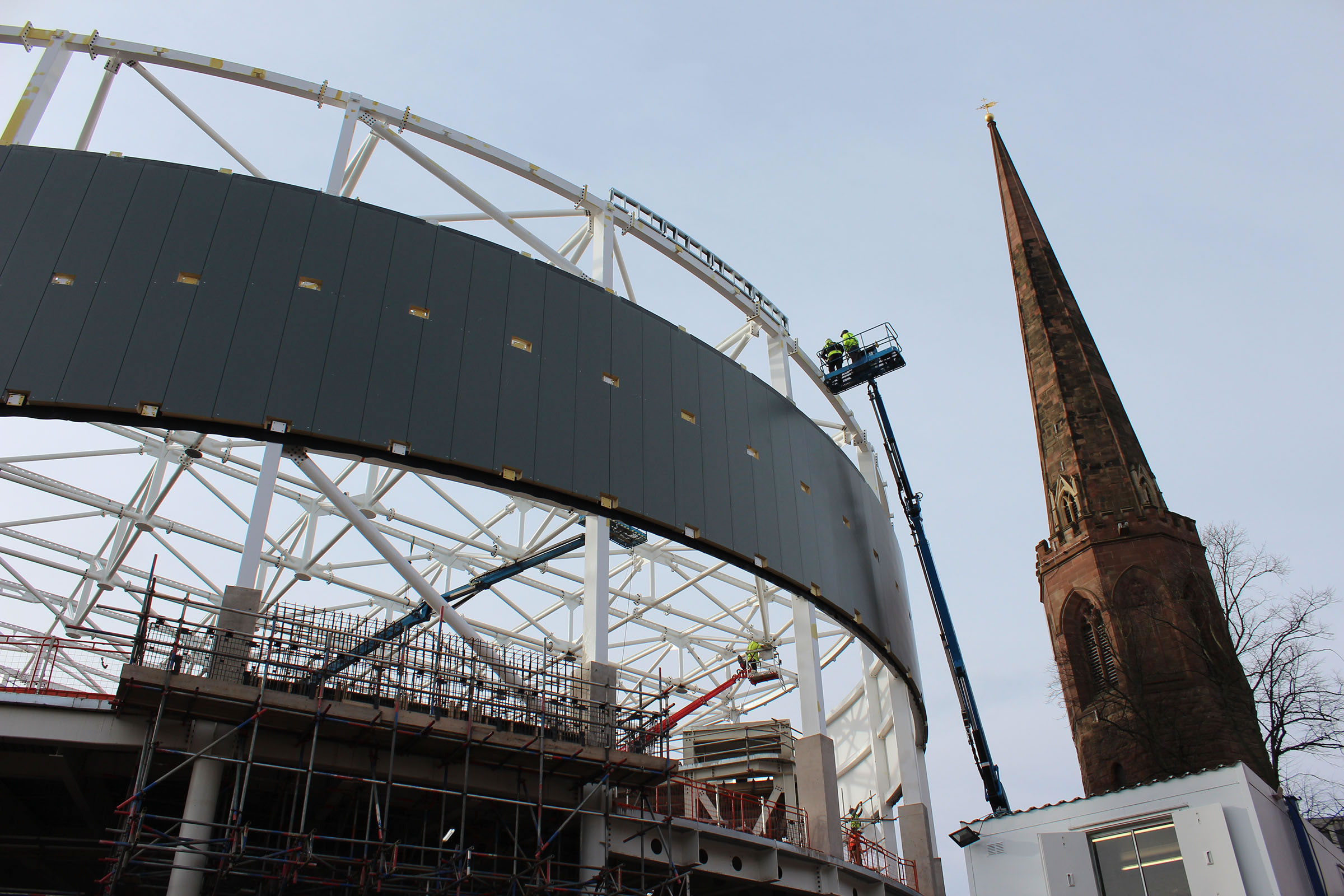

  • THE CLADDING included Kingspan Benchmark carrier panels, Top-hats, C Sections & rails.
  • Double sheeted 9mm marine plywood to the exterior to create the “perfect curve” along top-hats.

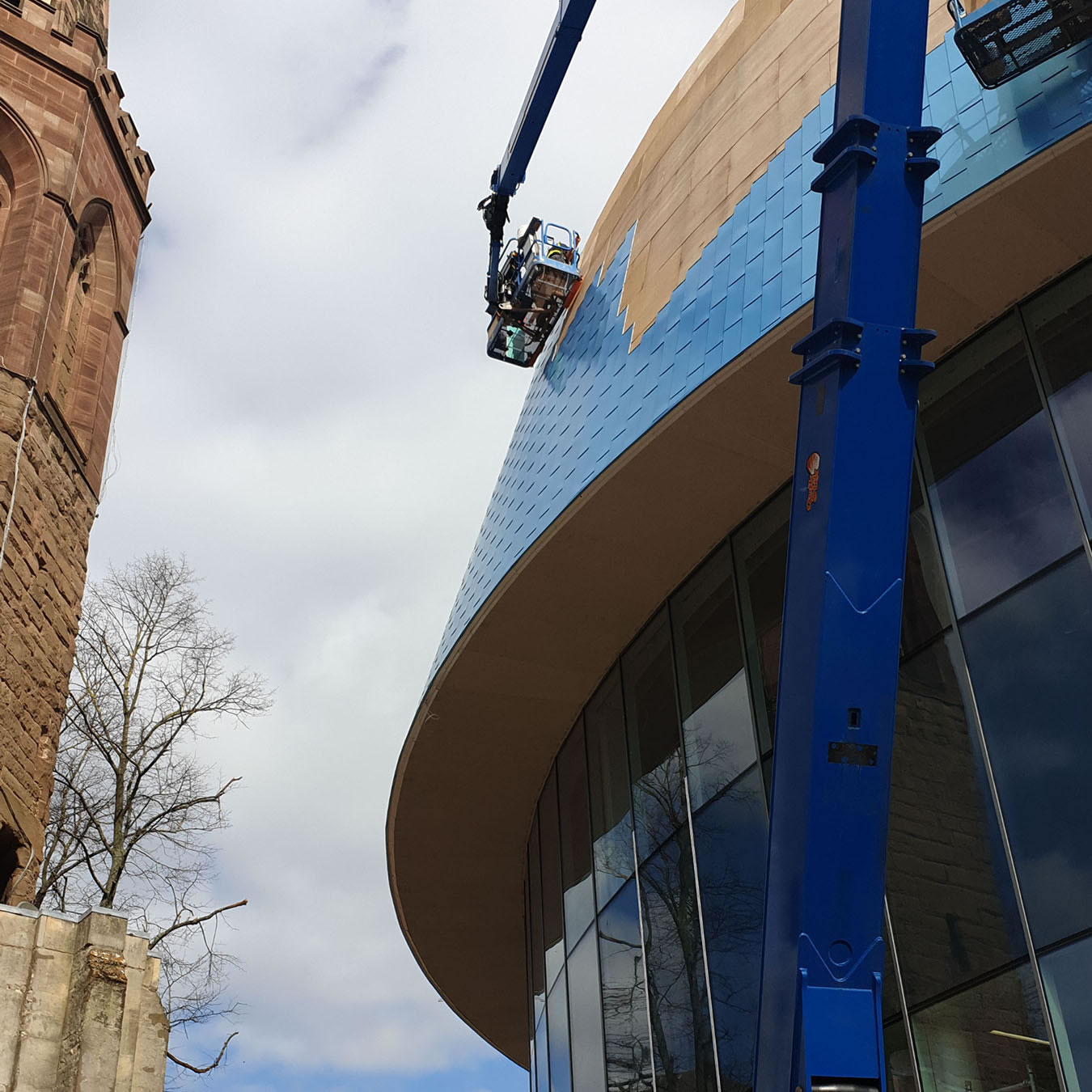

  • 15,000 individual shingles fitted to a 2mm tolerance to ensure perpetual façade finish.
  • Setting out the complete Shingle façade from a central datum point using 3d scanning and Trimble technology.

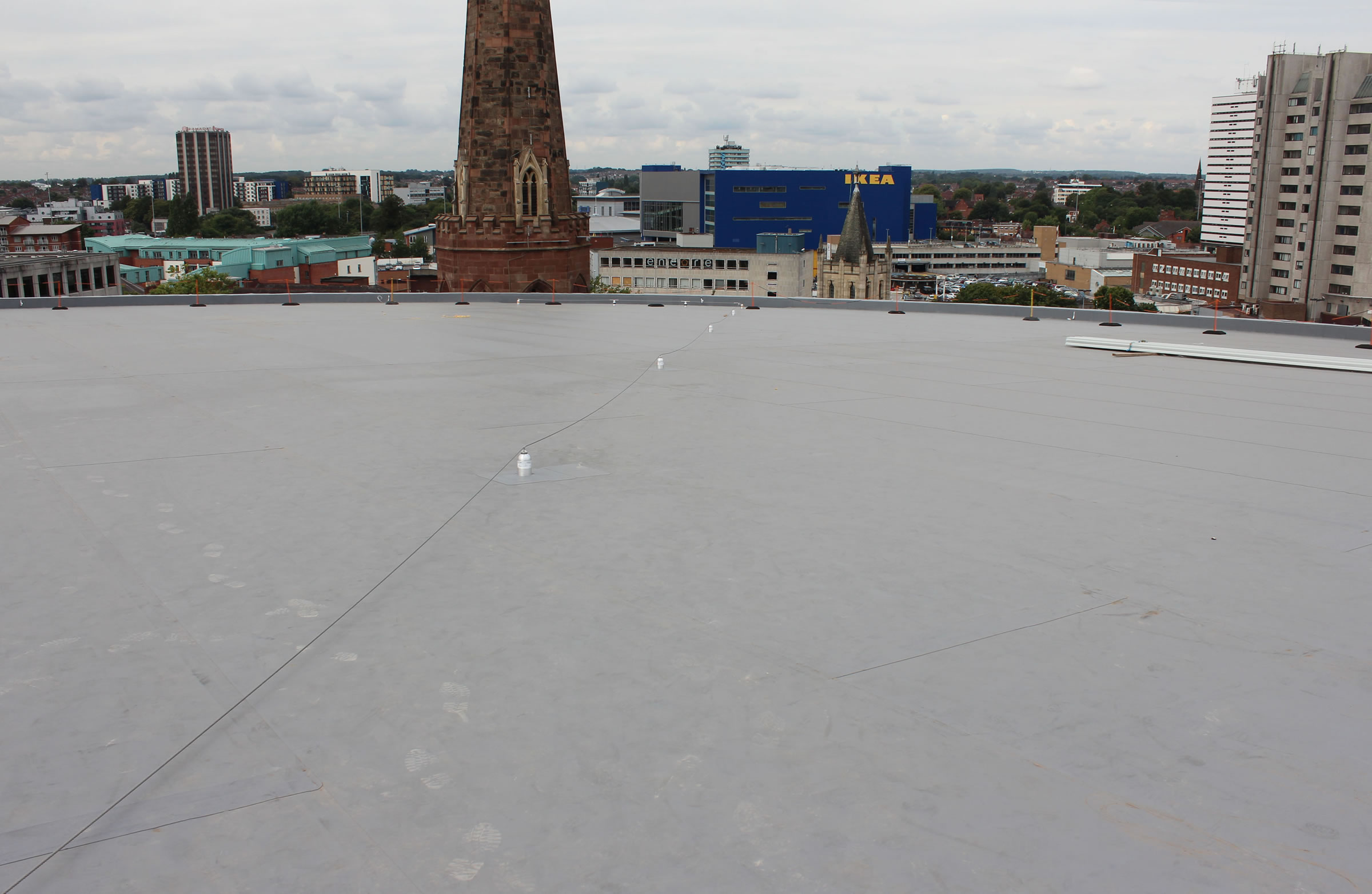

  • THE ROOF was a RENOLIT ALKORPLAN single ply fully bonded warm roofing system.

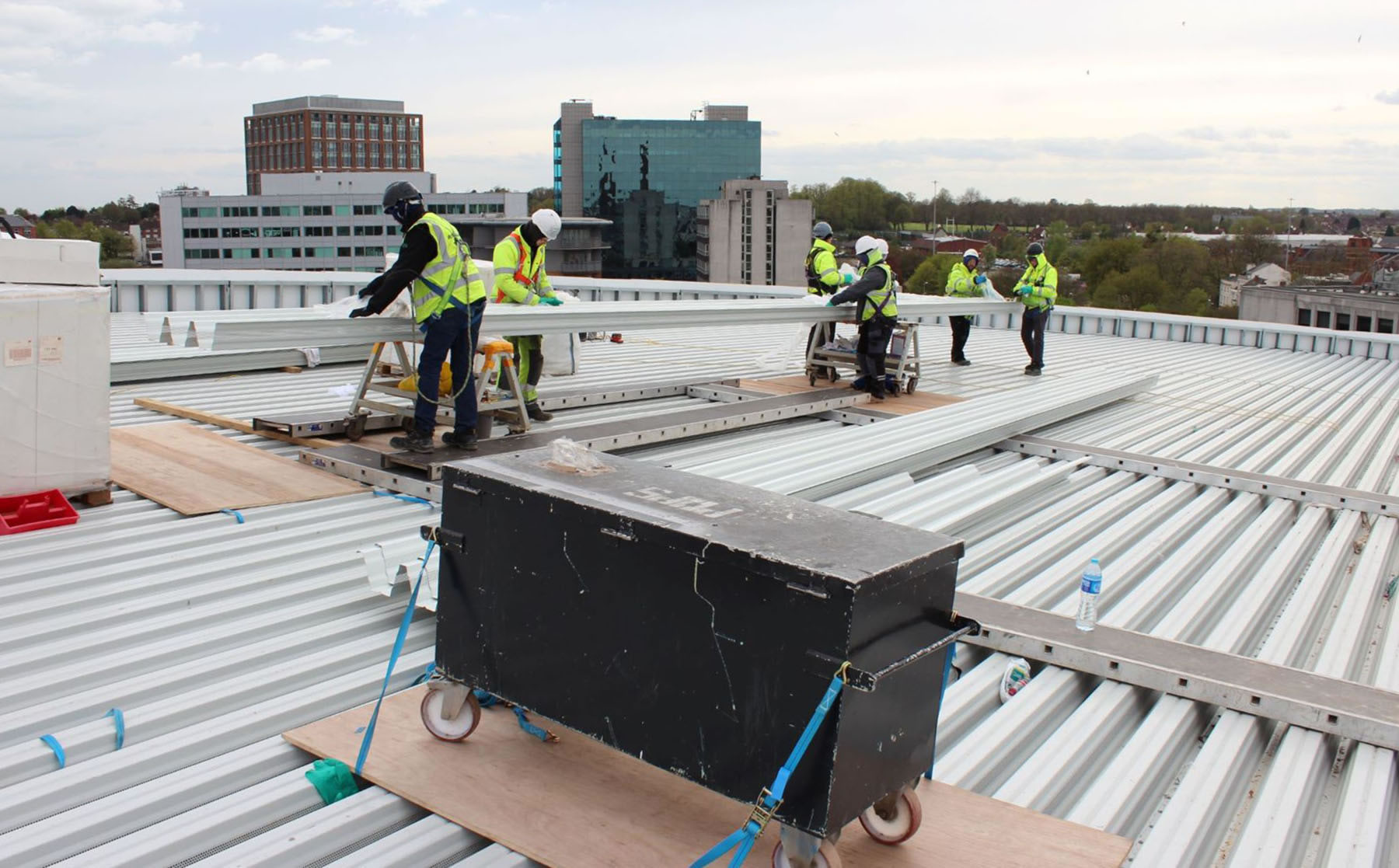

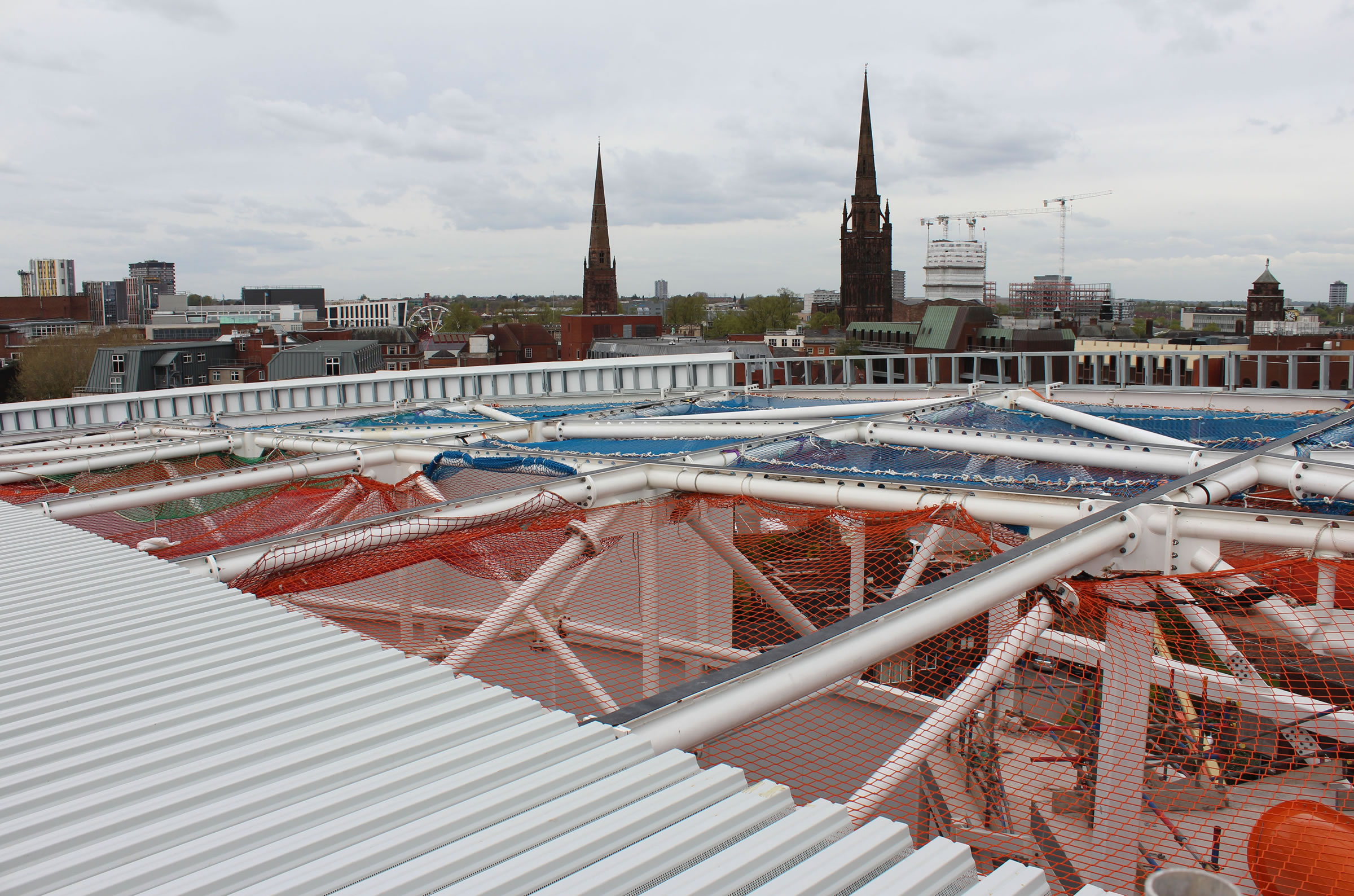

  • THE DECK comprised of 12m long perforated aluminium trapezoidal sheets fixed in the lap at 100mm centres
